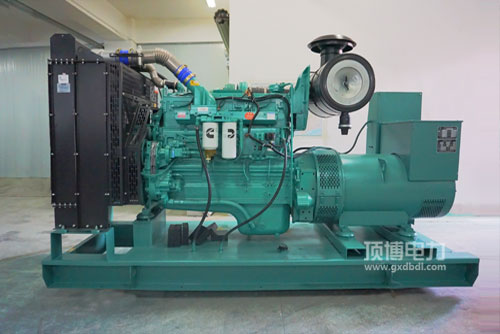

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用打着机柴油金钱性好: 高级的柴油设定操作系統，具有的STC、ESTC 分类设定操作系統，异常装修设计的连杆顶端自燃室，高电压喷涌柴油，加以吸雾，自燃加以。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用启因素瞬态性能方面优异的: 完美无瑕的启因素综合设计，合作康明斯差异化的的EFC操控系统，操控准确度更高，初始化失败时光快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用打着机升输出功率高: 整体性来设计紧奏型.形状安装适当，执行顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机种 QSNT. QSK19. QSK38. QSK50充分考虑我们非通道第三方第一阶段及中美洲Tier2. Tier 3排出法律规定请求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具即得性好， 热车机行驶及服务器维护皮肤保养连锁便利店，成本费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率区间 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态尺寸大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质理 Dry Weight   940kg

224-310KW康明斯电站用热车机的特征 ：体积大小小， 收缩比较高， 格珊空气质量加水，不易无法，可移动车载导航外接电源的优选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机参数	可用工作电压(kW)Prime Power	紧急功效kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
